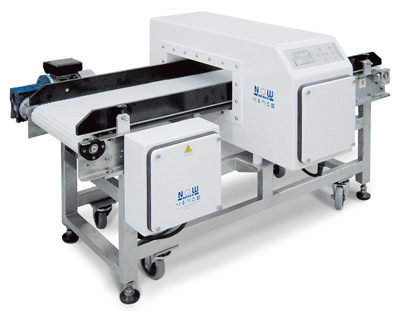

 Character- One Touch Conveyor - Easy belt change Applicable product- Small packed product - Raw material including agricultural and marine products, processed food stuffs A Drawing  |
Detecting sensitivitySensitivity/Model |
NMD440D 2508 |
NMD440D 2510 |
NMD440D 2515 |
NMD440D 2520 |
|
Fe |
0.5mm |
0.6mm |
0.7mm |
0.8mm |
|
SUS304 |
0.9mm |
0.9mm |
1.0mm |
1.2mm |
SpecificationSpec/Model |
NMD440D 2508 |
NMD440D 2510 |
NMD440D 2515 |
NMD440D 2520 |
||
Passable size |
Passable width |
200mm |
||||
Belt width |
200mm |
|||||
Passable height |
50mm |
70mm |
120mm |
170mm |
||
Belt speed |
10m ~ 70m/min (fixed) |
|||||
Power unit |
Single AC220V  10% 300VA 50/60Hz |
|||||
Recommended sorting method |
- Pusher type |
|||||
