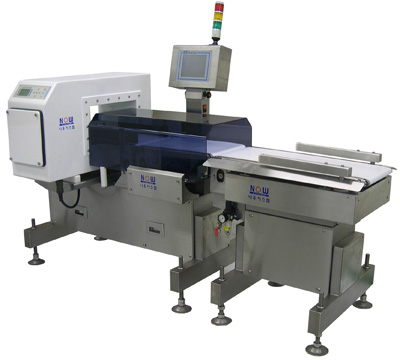

 Character- One body of check weigher and metal detector - Simultaneous capacity for detecting metal and weighing in narrow space - Perfect application of HACCP / PL Applicable product- Middle, small packed product - Auto check weight and detecting metal A Drawing  |
SpecificationSpec/Model |
NMD440D-COMBI |
||
Metal detector
|
Model |
NMD440 TYPE |
|
Tunnel size |
(W)100 ~ 900mm (H)80 ~ 500mm |
||
Material |
Aluminum light super-alloy / ALL SUS304 (option) |
||
Rejecting function |
Bar rejector function |
||
Check weigher
|
Model |
NWC450-200 TYPE |
|
Capacity |
10g ~ 3Kg |
||
Display setting min.interval |
0.01 ~ 5g (changeable : option) |
||
Optimum accuracy |
min  0.4g |
||
Sorting method |
2~3 way rejector function |
||
Conveyor
|
Size spec |
320(W)*1400(L)*700(H) 50mm |
|
Material |
All SUS304 (option) |
||
Usable air pressured |
5kg/  |
||
Rejector |
3WAY BAR REJECTOR |
||
Machine weight |
220kg |
||
Usable temperature |
-5  ~ 40 |
||
Usable power unit |
Single 220VAC, 60Hz |
||
Operating method |
- Working way passage the detector --> passage the weight checker --> passage the rejector |
||
